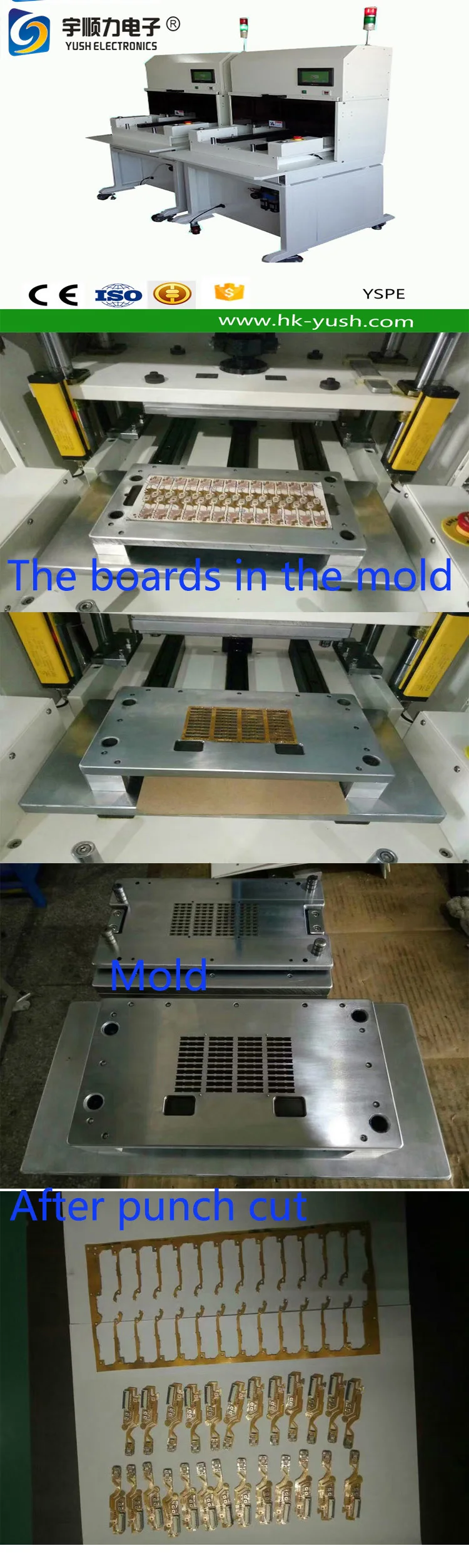

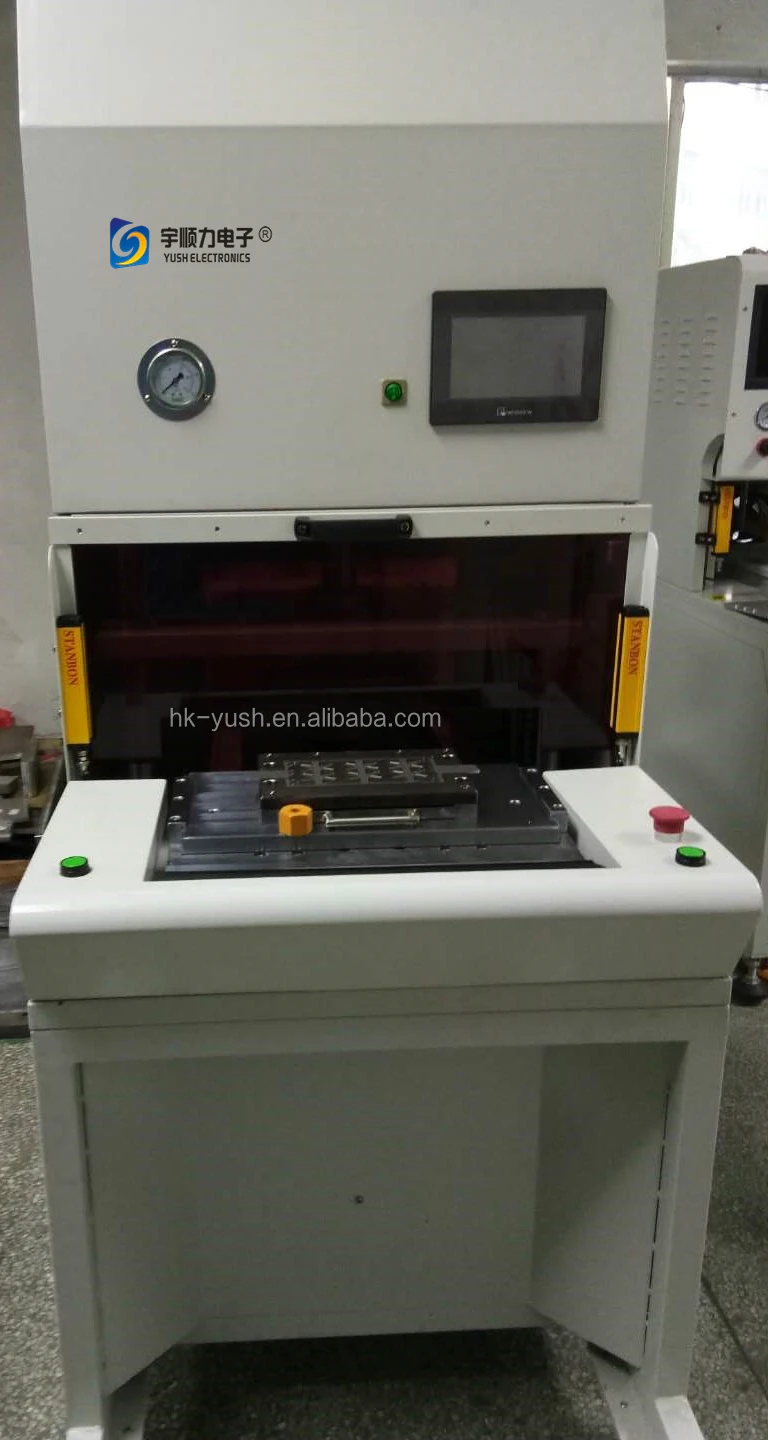

330×220mm 930×880×1750mm PCB/FPC/LED Punching Machine
YSPE PCB/FPC Punching Machine Feature:
1,PCBA Punch Machine is punch mold machine.
2,Equipment,compact structure,solid body,cylinder bore125,160,200AirTAC.
3,Equipment running smoothly,low vibration,low noise.
4,English touch screen display,clear panel,alarm function showed abnormal warning glance.

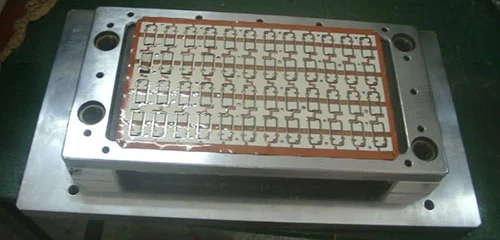

5,Machine generality.Can replace a variety of mold and die change quick and easy
6,DeviceSecurity:
6.1.Double switch start operation.
6.2.Device configuration mode and out of the chute,and out of the lower mold automatic pick and place convenient and safe products.
6.3.Set the emergency stop switch,identify problems and timely shutdown.
6.4.Set security doors,installation and commissioning of the mold to avoid straying hands.(Normal operation with out security door doesnot work).
6.5.Set security door grating sensing device,placed in the wrong plate on the mold of the injection device can sense the mistakes,the mold cannot enter.
6.6.Safety pressure setting function,limit alarm.Automatic counting,limit down time.
7,The internal stress generated when the cutting board to a minimum and to avoid cracking of tin.

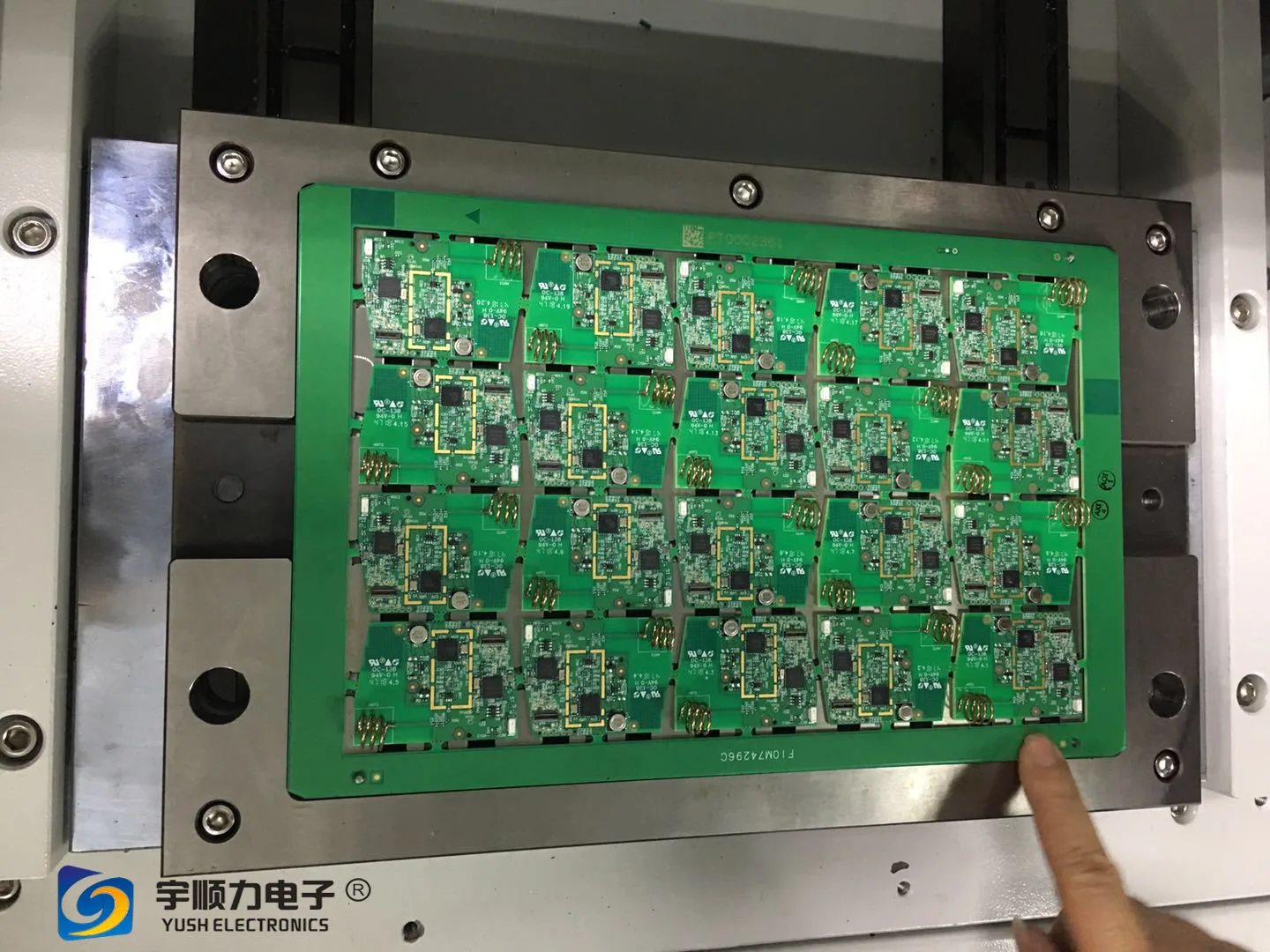

8,Punching semi-finished PCB,FPC high efficiency.
Machine specifications:
Machine size: | 930×880×1750mm |
Output | 3T/8T/10T |
Cylinder return Opening Force | 1.5T 4T 5T |
Working pressure | 0.50-0.70Mpa Dry air supply |
Working Area | 330×220mm |
Power | 220VAC |
Punch Speed: | 8~15s Can adjustable(Not include put boards and pickup time) |
work plan | ≥60mm |
Work Noise | ≤60dB |
WorkingAccuracy: | ±0.05mm |
Machine weight | 680kg |
