VCUT Cutting Machine Operating instructions:

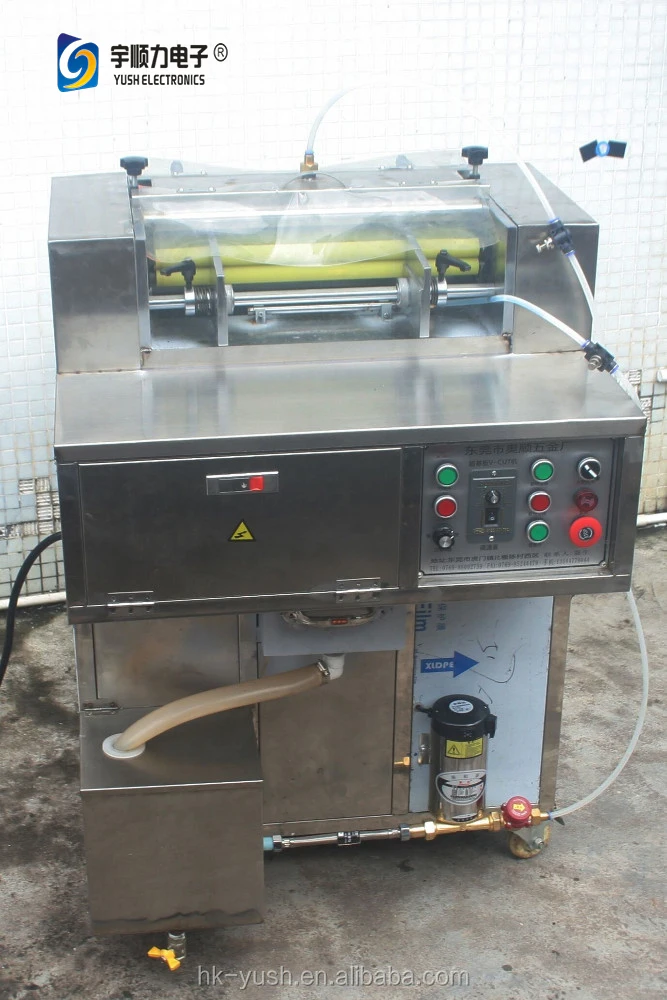

Product Name: PCB board v groove machine (5 pairs of plastic shaft)

Cutting width: 75mm wide vertical 380MM

Thickness: 0.8 to 3.2 mm

Cardboard each time V≥10 pit (above and below 10 knives)

Aluminum plate each time V≥ 5 pit (4 knife up and down)

PCB Board each time V≥ 8 pit (upper and lower knives 8)

Speed: 8 m / min

Spindle motor: 3KW inverter 3.7KW plastic shaft motor 120W close crate motor 60W

Mechanical Dimensions: 1200 mm x 980 mm x 1400 mm (W x D x H)

Weight: 145KG

Accessories: gasket set, V CUT knife 4. Shield bearing 10, each the size of a wrench, a hex key set,

installed a turret.
