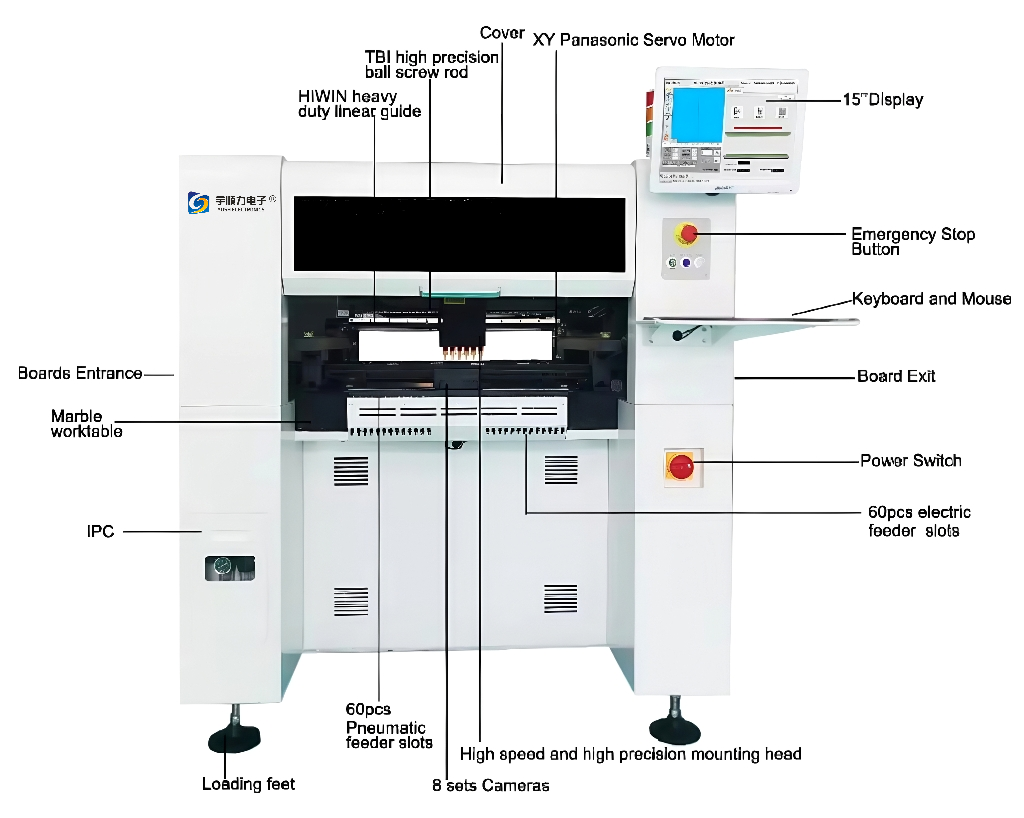

Mounting Heads

6

XYZ Drive Guide Rail

TBI High-precision heavy-duty straight-line guide rail

Average Power

600W

Positioning Accuracy

0.01mm

Motion Drive System

Panasonic High speed DPS driver

Nozzle Buffering Range

5.0mm

Operating System

Support Windows XP, Win7 operating system

Power Supply

220V, 50Hz

Component Angle

0~360°, synchronized rotation in motion

Compressed Air

0.5-06Mpa

X/Y Running Mode

Imported TBI high-precision ball screw rod + imported TBI heavy-duty linear guide

Driving Motor

Panasonic servo motor

Recognition Method

Six heads recognize synchronously

Mark Point Positioning

Full automation

Nozzle Vacuum Source

High-speed on-off vacuum generator with vacuum damage

Intelligent Alarm

Automatic correction and supplement, alarm when materials shortage

Max. Circuit Board Area

650x370mm

Board Input Method

Three-section transmitting boards-automatic connection from left to right, automatic PCB transmission positioning

XY Max. Movement Range

700x619mm

Z Axis Max. Movement Range

20mm

Visual Display

15" industrial control display ratio 4:3, resolution 1024X768

Belt Type Feeder

8/12/16/24mm feeders, stick feeder, tube chip

Programming Mode

Point-to-point programming, visual programming, PCB file coordinates inputting, etc.

Max. Mounting Speed

13000CPH

Average Mounting Speed

10000CPH (Visual)

Recognition Camera No.

1 Mark recognition camera, 6 high speed recognition camera, 1 high-precision recognition camera

Dimensions

1335x1230x1420mm

Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 40mm*40mm range pin pitch ≥0.3mm QFP, BGA etc.
