Product Advantages:

1. Total 10pcs of cameras: 1PC of Mark recognition camera, 8pcs of high speed recognition camera, 1PC of 8 million pixel high-precision recognition camera, synchronously recognize, effectively ensure mounting speed and precision. What’s more, precision camera redesigned as the postposition structure, more place to hold feeders for the front part, improve the efficiency of placement.

2. Adopt imported JUKI nozzle spring buffer, not easy to drop components when picking and placement, convenient to install and durable. Up to 4 groups of components can be picked up at the same time, which improves the picking up speed and work efficiency of the machine.

3. XY drives adopt imported TBI high precision lapping ball screw + heavy-load linear guide, fast positioning, low noise and high precision. Precision control error can reach 0.018mm.

4. Adopt Japan Panasonic A6 series AC servo motor, the encoder with 23Bit precision, 8 times higher than A5 series.

5. With two 17” displays, could operate front and rear simultaneously, making the operation easier, saving operators' time, no need to run around the machine.

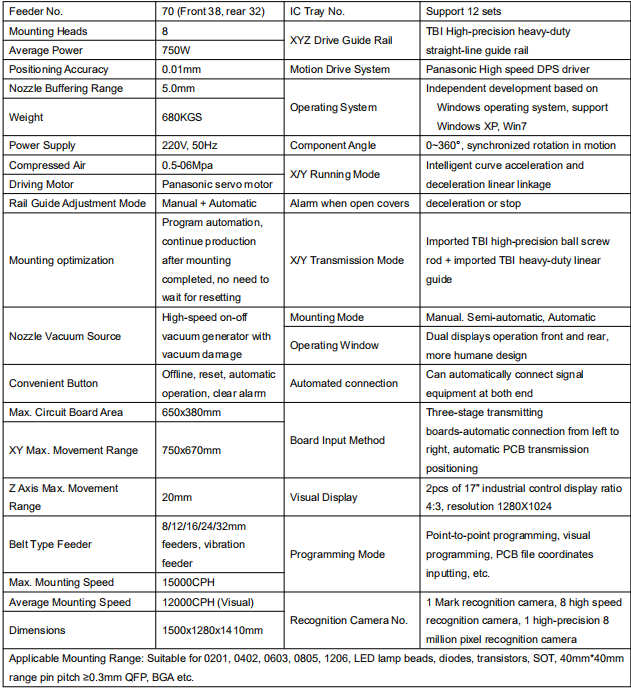

Product Specification:
