High Speed Semi-auto SMT PCB Assembly Production Line

High Speed Semi-auto SMT PCB Assembly Production Line

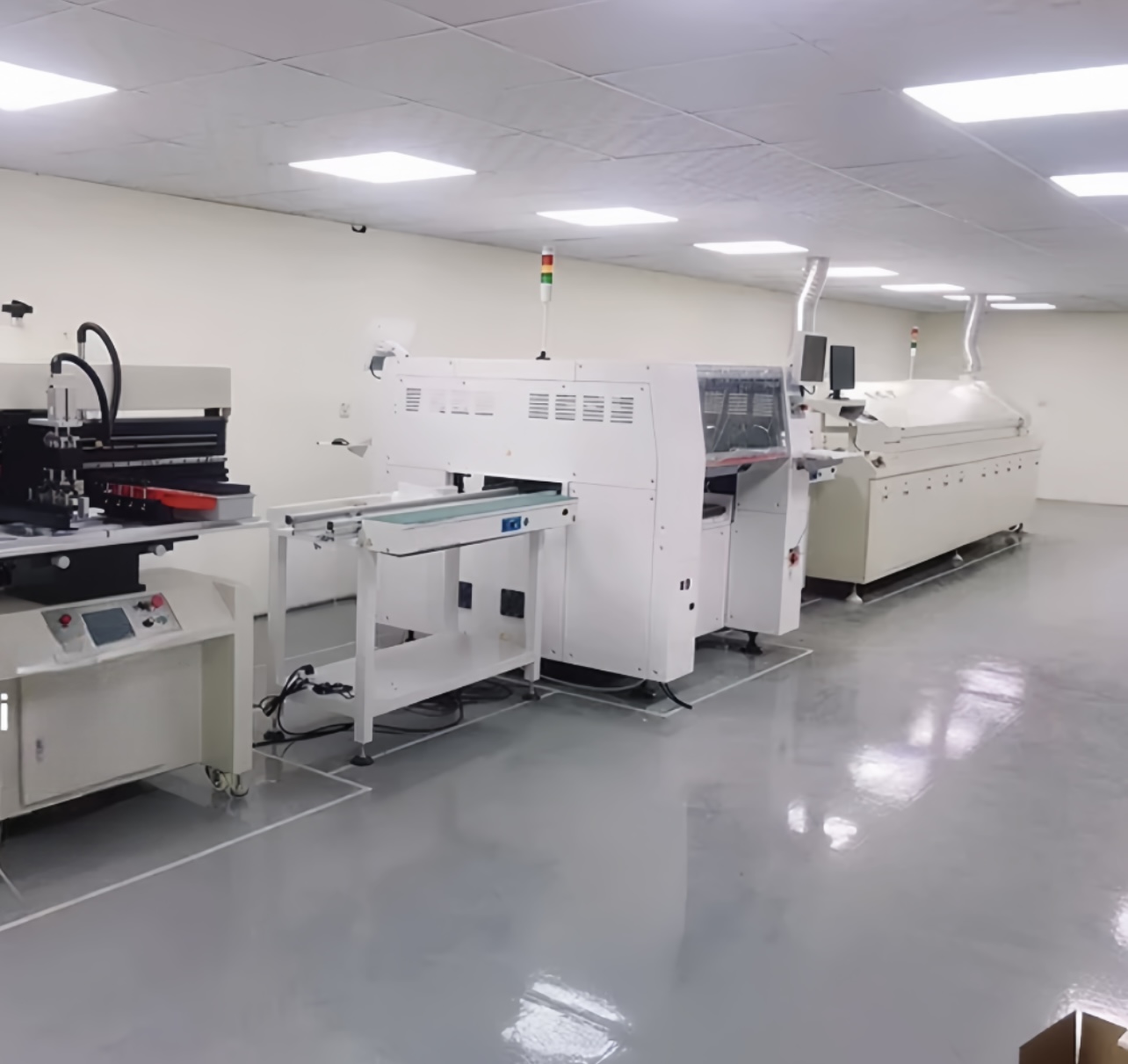

High speed semi-auto SMT production line, SMT assembly line, placement speed can be around 156000 CPH, SMT line for mobile phone, LED TV production.

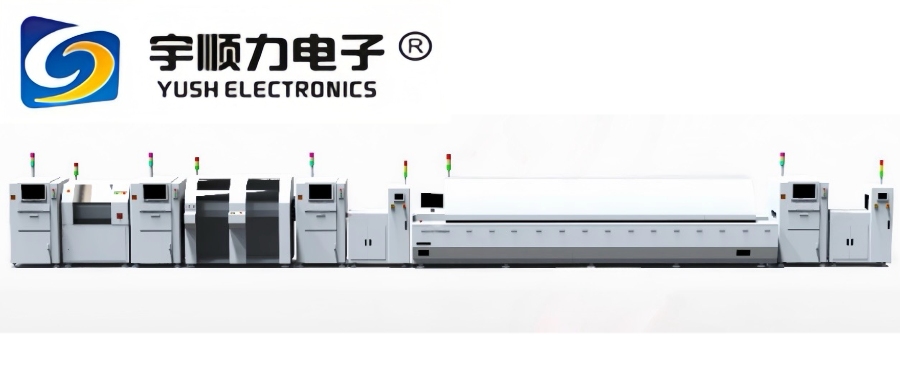

Introduce of SMT Production Line

• SMT Stencil Printer ( Semi-auto)

Model	Y3	Y6	Y12
Accuracy	+/- 0.05mm	+/- 0.05mm	+/- 0.05mm
PCB Size	300 x 350 mm	600 x 350 mm	1200 x 350 mm
Platform size	300 x 350 mm	700 x 400 mm	1350 x 400 mm
Stencil Size(mm)	370*470,550*650	370*470,550*650	370*470,550*650,1500*650
PCB Thickness	0.2 - 6 mm	0.2 - 6 mm	0.2 - 6 mm
Stencil Positioning	Manual	Manual	Manual
Cycle Time	< 10 Sec.	< 10 Sec.	< 12 Sec.
Power Consumption	200 W	200 W	200 W
Power Supply	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ
Air Pressure	4.5-6 kg/cm	4.5-6 kg/cm	4.5-6 kg/cm
Squeegee Speed	0-1500mm/sec	0-1500mm/sec	0-1500mm/sec
Dimension	850x750x1650 mm	1050x750x1650 mm	1660x750x1650 mm
Weight	280 Kg	300 Kg	356 Kg
Squeegee Length	250mm	250mm	250mm
Platform Height	950mm	950mm	950mm
Option: Special size can be customized

• Reflow Oven

Model	L8	L10
Dimension (L*W*H)mm	5000x1250x1490	5800x1250x1490
Weight	Approx. 1600KG	Approx. 1800KG
Number Of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length Of Heating Zones	3121mm	3891mm
Rail Width Adjustment	M(option:A)
Exhaust Volume	10M3/minx2 Exhausts
Control System	PLC+Computer
Temperature Control Method	PID + SSR

Model	622		733
Dimension (L*W*H)mm	5040*145*1450		5800*1450*1450
Machine Weight	Approx. 2200KG		Approx. 2400KG
Number Of Heating Zones	Up8/Bottom8		Up10/Bottom10
Length Of Heating Zones	3030mm		3730mm
Number of Cooling Zones	2		3
Control System	PLC+Computer		PLC+Computer
Transmission Agent	Chain + Mesh		Chain + Mesh
Max.Width Of PCB	460mm		460mm
Power For Warm Up	45kw		55kw
Power Consumption	8kw		10kw
Conveyor Height	900+/-20mm		900+/-20mm

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT
