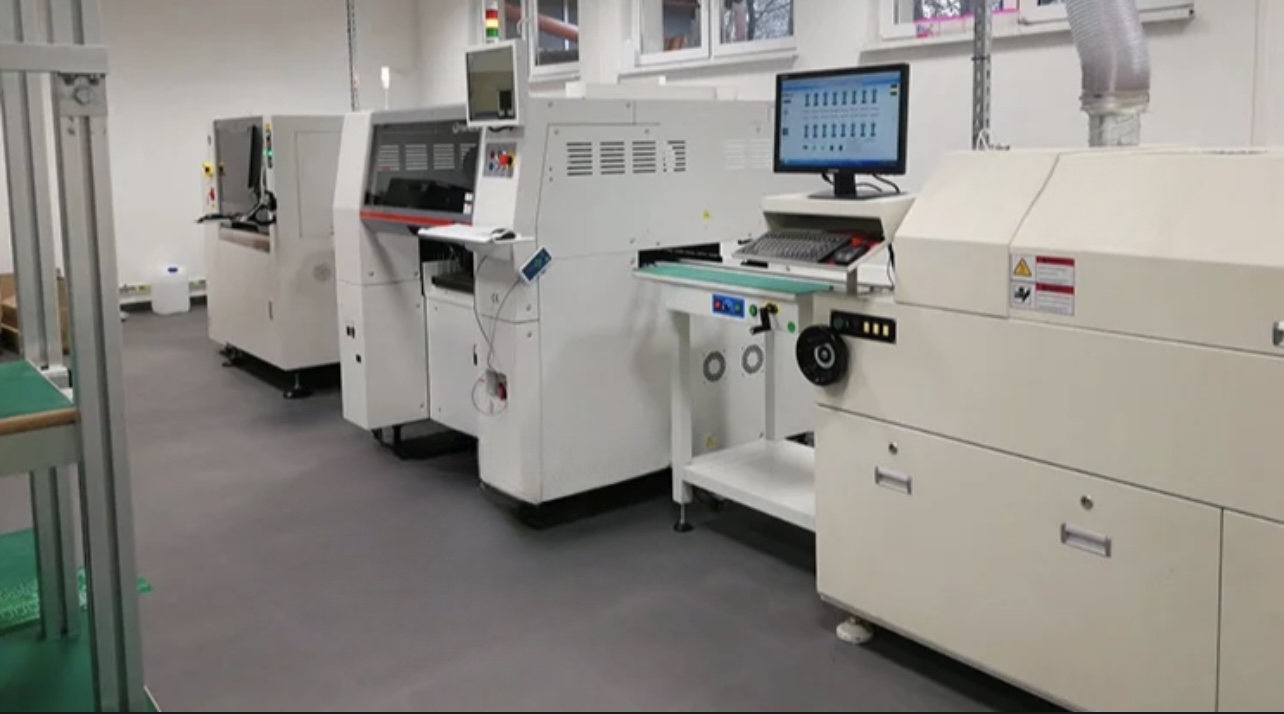

Semi-auto SMT line
Low speed SMT production line with high quality and professional SMT solutions. welcome to contact us and got a good price.
Semi-auto SMT Stencil Printer
| Model | P3 | P6 | P12 |
| Accuracy | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm |
| PCB Size | 300 x 350 mm | 600 x 350 mm | 1200 x 350 mm |
| Platform size | 300 x 350 mm | 700 x 400 mm | 1350 x 400 mm |
| Stencil Size(mm) | 370*470,550*650 | 370*470,550*650 | 370*470,550*650,1500*650 |
| PCB Thickness | 0.2 - 6 mm | 0.2 - 6 mm | 0.2 - 6 mm |
| Stencil Positioning | Manual | Manual | Manual |
| Cycle Time | < 10 Sec. | < 10 Sec. | < 12 Sec. |
| Power Consumption | 200 W | 200 W | 200 W |
| Power Supply | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ |
| Air Pressure | 4.5-6 kg/cm | 4.5-6 kg/cm | 4.5-6 kg/cm |
| Squeegee Speed | 0-1500mm/sec | 0-1500mm/sec | 0-1500mm/sec |
| Dimension | 850x750x1650 mm | 1050x750x1650 mm | 1660x750x1650 mm |
| Weight | 280 Kg | 300 Kg | 356 Kg |
| Squeegee Length | 250mm | 250mm | 250mm |
| Platform Height | 950mm | 950mm | 950mm |
| Option: Special size can be customized | |||
Reflow Oven
| Model | 622 | 733 | ||
| Dimension (L*W*H)mm | 5040x1450x1450 | 5800x1450x1450 | ||
| Machine Weight | Approx. 2200KG | Approx. 2400KG | ||
| Number Of Heating Zones | Up8/Bottom8 | Up10/Bottom10 | ||
| Length Of Heating Zones | 3030mm | 3730mm | ||
| Number of Cooling Zones | 2 | 3 | ||
| Control System | PLC+Computer | PLC+Computer | ||
| Transmission Agent | Chain + Mesh | Chain + Mesh | ||
| Max.Width Of PCB | 460mm | 460mm | ||
| Power For Warm Up | 45kw | 55kw | ||
| Power Consumption | 8kw | 10kw | ||
| Conveyor Height | 900+/-20mm | 900+/-20mm | ||
