Using linear guide-ways, matching motor drive speed, ensure the printing stability and precision.
Blade pressure and printing speed is asjustable, precision pressure gauge, speed controller display.
Modular universal bench, thimble random placement, easy conversion.
With alignment device for PCB board and frame.
| Model | P3 | P6 | P12 |
| Accuracy | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm |
| PCB Size | 300 x 350 mm | 600 x 350 mm | 1200 x 350 mm |
| Platform size | 300 x 350 mm | 700 x 400 mm | 1350 x 400 mm |
| Stencil Size(mm) | 370*470,550*650 | 370*470,550*650 | 370*470,550*650,1500*650 |
| PCB Thickness | 0.2 - 6 mm | 0.2 - 6 mm | 0.2 - 6 mm |
| Stencil Positioning | Manual | Manual | Manual |
| Cycle Time | < 10 Sec. | < 10 Sec. | < 12 Sec. |
| Power Consumption | 200 W | 200 W | 200 W |
| Power Supply | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ |
| Air Pressure | 4.5-6 kg/cm | 4.5-6 kg/cm | 4.5-6 kg/cm |
| Squeegee Speed | 0-1500mm/sec | 0-1500mm/sec | 0-1500mm/sec |
| Dimension | 850x750x1650 mm | 1050x750x1650 mm | 1660x750x1650 mm |
| Weight | 280 Kg | 300 Kg | 356 Kg |
| Squeegee Length | 250mm | 250mm | 250mm |
| Platform Height | 950mm | 950mm | 950mm |
| Option: Special size can be customized | |||

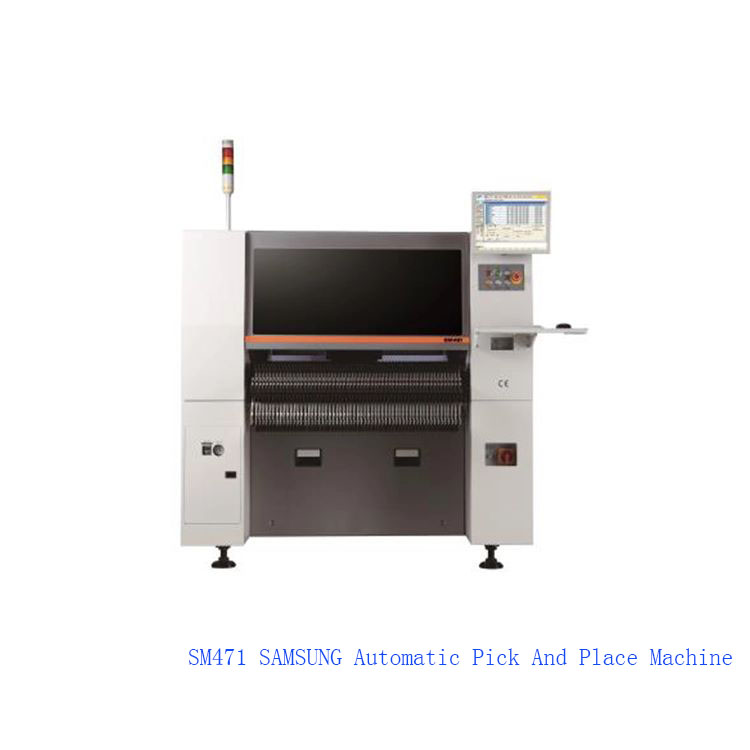

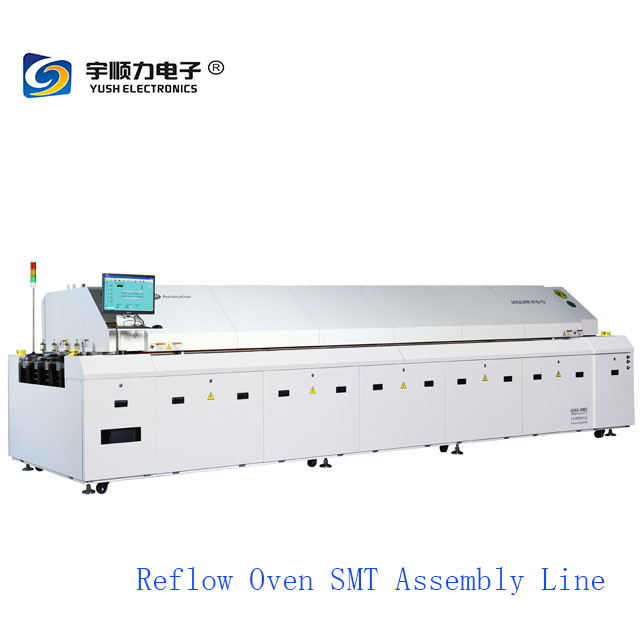

SM481 Plus SMT Assembly line, with Automatic solder paste printer, SM481 plus pick and place machine reflow oven, the production speed is around 40000 CPH. really suitable for Mobile phone, LED light production, communication, LCD TV, STB, family cinema, vehicle electronics.

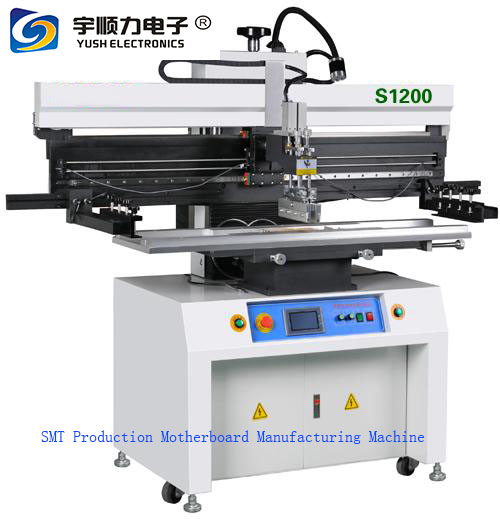

Semi-auto SMT Stencil Printer
High effective flux management system
High stability nitrogen protection system
High performance cooling system
Using linear guide-ways, matching motor drive speed, ensure the printing stability and precision.
Blade pressure and printing speed is asjustable, precision pressure gauge, speed controller display.
Modular universal bench, thimble random placement, easy conversion.
With alignment device for PCB board and frame.
| Model | P3 | P6 | P12 |
| Accuracy | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm |
| PCB Size | 300 x 350 mm | 600 x 350 mm | 1200 x 350 mm |
| Platform size | 300 x 350 mm | 700 x 400 mm | 1350 x 400 mm |
| Stencil Size(mm) | 370*470,550*650 | 370*470,550*650 | 370*470,550*650,1500*650 |
| PCB Thickness | 0.2 - 6 mm | 0.2 - 6 mm | 0.2 - 6 mm |
| Stencil Positioning | Manual | Manual | Manual |
| Cycle Time | < 10 Sec. | < 10 Sec. | < 12 Sec. |
| Power Consumption | 200 W | 200 W | 200 W |
| Power Supply | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ |
| Air Pressure | 4.5-6 kg/cm | 4.5-6 kg/cm | 4.5-6 kg/cm |
| Squeegee Speed | 0-1500mm/sec | 0-1500mm/sec | 0-1500mm/sec |
| Dimension | 850x750x1650 mm | 1050x750x1650 mm | 1660x750x1650 mm |
| Weight | 280 Kg | 300 Kg | 356 Kg |
| Squeegee Length | 250mm | 250mm | 250mm |
| Platform Height | 950mm | 950mm | 950mm |
| Option: Special size can be customized | |||
SM481 Plus SMT Assembly line, with Automatic solder paste printer, SM481 plus pick and place machine reflow oven, the production speed is around 40000 CPH. really suitable for Mobile phone, LED light production, communication, LCD TV, STB, family cinema, vehicle electronics.
Semi-auto SMT Stencil Printer
High effective flux management system
High stability nitrogen protection system
High performance cooling system
