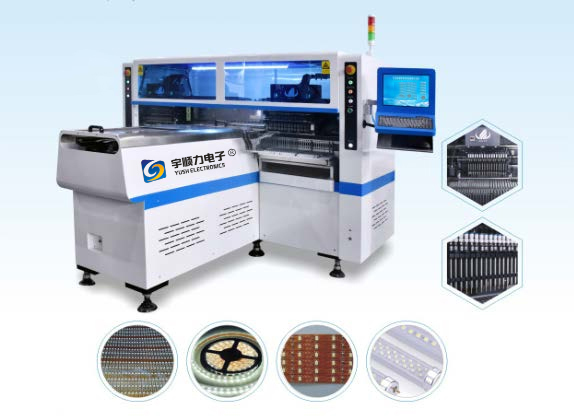

Dual arm magnetic linear LED highspeed pick and place machine

Producing 4 types materials atthe same time, capacity reach 250000 CPH

Features

1. Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of

materials at the same time with high capacity. available for board with any proportion of LED chip and

resistor.

2.Dual arm four modul, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or

synchronously.

3.Calibration automatically, high precision, available for RGB.

4.Exclusive patent technology: Group to take and group to mount.

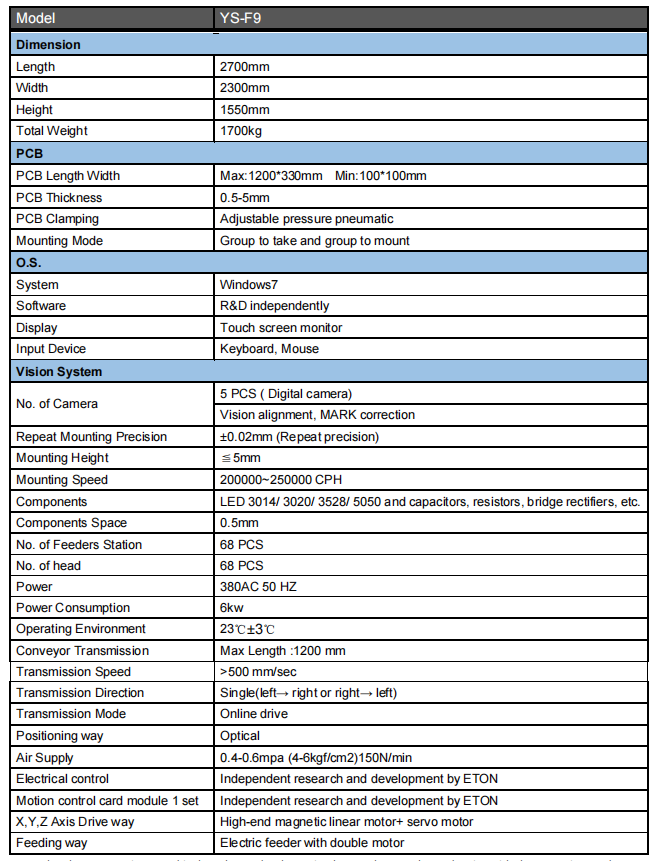

Technical parameter

Note: The above mounting speed is the value under the optimal state, the actual speed varies with the mounting products
